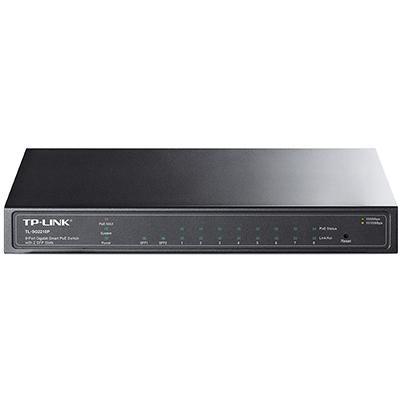

TP-LINK Gigabit Smart Switch TL-SG2210P is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support the PoE standard with total PoE power budget of 53W and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features
TP-LINKs Gigabit Smart Switch TL-SG2210P is especially designed for the small and medium business networks that require efficient network management. TL-SG2210P comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. Whats more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network
The TL-SG2210P supports 8 ports of IEEE 802.3af-compliant PoE and has a total power supply of 53W to power any 802.3af compliant power device. Its an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2210P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance
For more application of layer 2 switches, TL-SG2210P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access
TL-SG2210P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events
PoE Features
Layer 2 Features
Static Link Aggregation/ Link Aggregation Control Protocol (LACP)
Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
STP/RSTP/MSTP
IGMP Snooping
LLDP(LLDP-MED)
Quality of Service
4 priority queues
Support IEEE 802.1P
DSCP QoS
Rate limit feature
Security Strategies
Access Control List (L2 to L4 ACL)
IP-MAC-Port Binding
802.1x and Radius Authentication
Port Security
Storm Control
SSL and SSH encryptions
Dos Defend
Management
Web-based GUI
Command Line Interface(Telnet)
SNMP v1/v2c/v3
RMON (1, 2, 3, 9 group)
HARDWARE FEATURES
Standards and Protocols, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface, 8 10/100/1000Mbps RJ45 Ports, 2 1000Mbps SFP Slots, (Auto-Negotiation/Auto MDI/MDIX)
Fan Quantity, Fanless
Dimensions, 209(W) x 126(D) x 26(H)mm
PERFORMANCE
Bandwidth/Backplane, 20Gbps
Packet Forwarding Rate, 14.9Mpps
MAC Address Table, 8k
Packet Buffer Memory, 512KB
Jumbo Frame, 9216 Bytes
SOFTWARE FEATURES
VLAN, Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List, L2 to L4 package filtering based on source and destination, MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID, Time Range Based
Security, SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown unicast Storm Control, 802.1x and Radius Authentication, IP-Mac-Port-VID Binding, ARP Inspection, DHCP Snooping, DoS Defend
L2 Switching Features, IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control, LLDP(LLDP-MED)
OTHERS
Certification, CE, FCC, RoHS
Package Contents, TL-SG2210P, Power Adapter, Installation Guide, Resource CD, Rubber Feet
System Requirements, Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux
